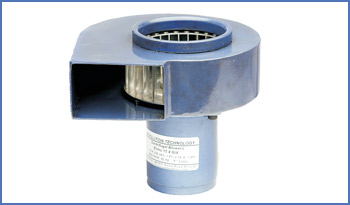

Centrifugal Blower CB - 100836

We are Manufacturer, Supplier of Centrifugal Blowers, Centrifugal Blower - CB from Pune, Maharashtra, India.
PMDC Motor 20 watt
• Continuos Rating, Aluminium Impeller.
• Rotates in Counter Clock Wise Direction.
• Sheet Metal Fabricated MS body.
• With Die Cast Aluminium Body.

Revolution Technology

Specifications :

Output Power W
Model
Frequency Hz
Supply Voltage Volt
Current A
Max. Air Flow. CFM
Max. Static Presure
Pa mm of H2O
Rated Speed RPM
Capacitor uF
15
CB 100836 W
60
110 V Single Phase
0.40
100
240
24
2800
2.5
15
CB 100836 X
50
230 V Single Phase
0.20
100
200
20
2800
1.5
15
CB 100836 Y
60
230 V Three Phase
0.21
100
230
24
2800
-----
15
CB 100836 Z
50
230 V Three Phase
0.10
100
176
20
2800
-----

Centrifugal blowers move air by means of the centrifugal force generated by rotating a cylindrical impeller.

Used for applications where increased air pressure, increased static pressure, high airflow is required.

Centrifugal blowers have a small outlet, which concentrates air in a single direction, and are therefore suitable for local cooling .

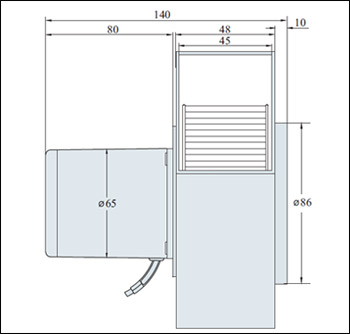

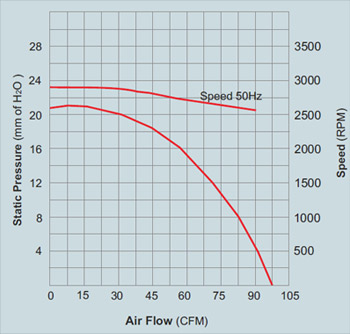

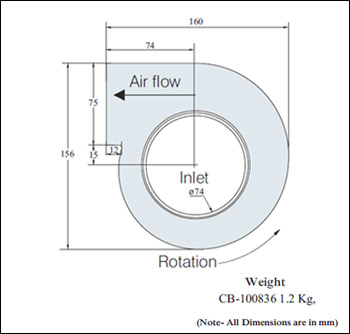

Revolution Technology

Revolution Technology
Revolution Technology


Wiring Diagram

Wiring diagram for Single Phase Blower
Ensure that the impeller is rotation in anti clockwise direction, air flow is maximum.

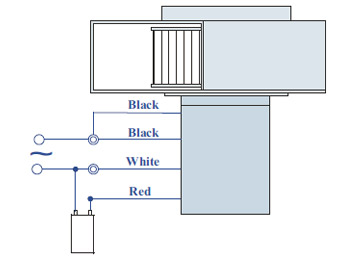

Standard Single Phase Blower

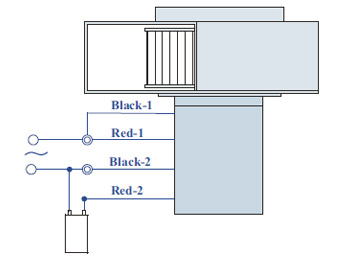

SR Type Single Phase Blower
Round AC Induction Motor With Terminal Box
Round AC Induction Motor With Terminal Box
Short Black wires and connect the capacitor as shown. To change the direction, connect the supply wire from White to Red.
 Red wires are for running winding and Black wires for Starting winding. To change the direction, interchange Black wires or Red wires.

Wiring diagram for Three Phase Motors

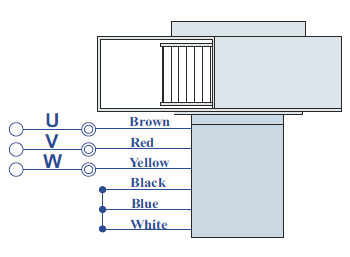

Star Connection
Delta Connection
Round AC Induction Motor With Terminal Box
Round AC Induction Motor With Terminal Box
For the Voltage 415 VAC, 3-Phase Supply, Wires are connected as shown in the fig. Short Blue, Black and White and then insulate it carefully. To change the direction, interchange any two wires between U, V & W.
 For the Voltage 230 VAC, 3-Phase Supply, Wires are connected as shown in the fig. Short Blue & Red, Black & Yellow, and White& Red as per the fig. Shown. To change the direction, interchange any two wires between U, V & W.
